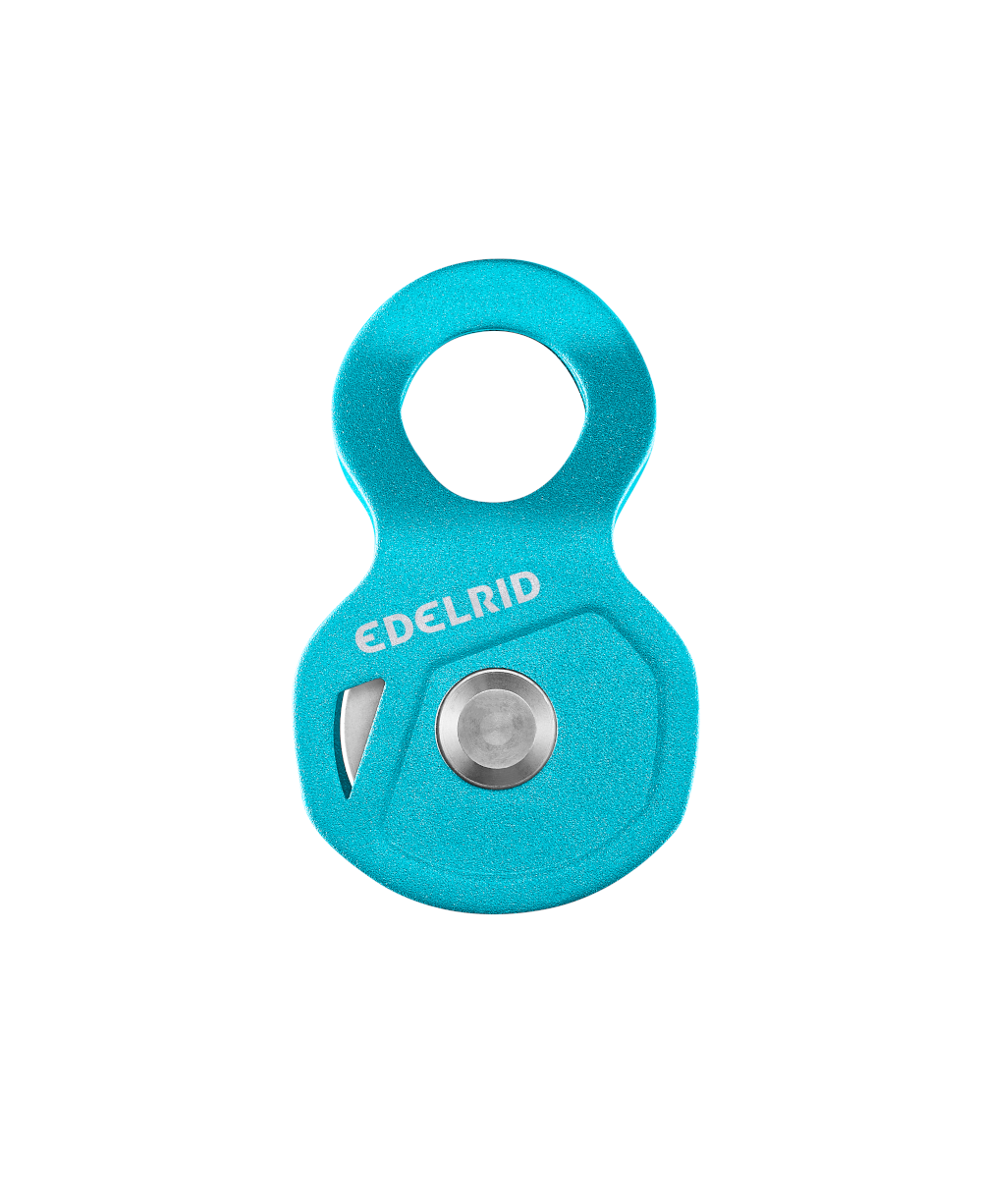

Flux Pulley

The FLUX pulley offers a perfect blend of portability and performance for professionals needing reliable rigging solutions. This lightweight pulley is designed for easy installation and efficient operation, making it ideal for various applications involving fabric ropes and medium loads.

Efficient Design for Quick and Secure Rigging

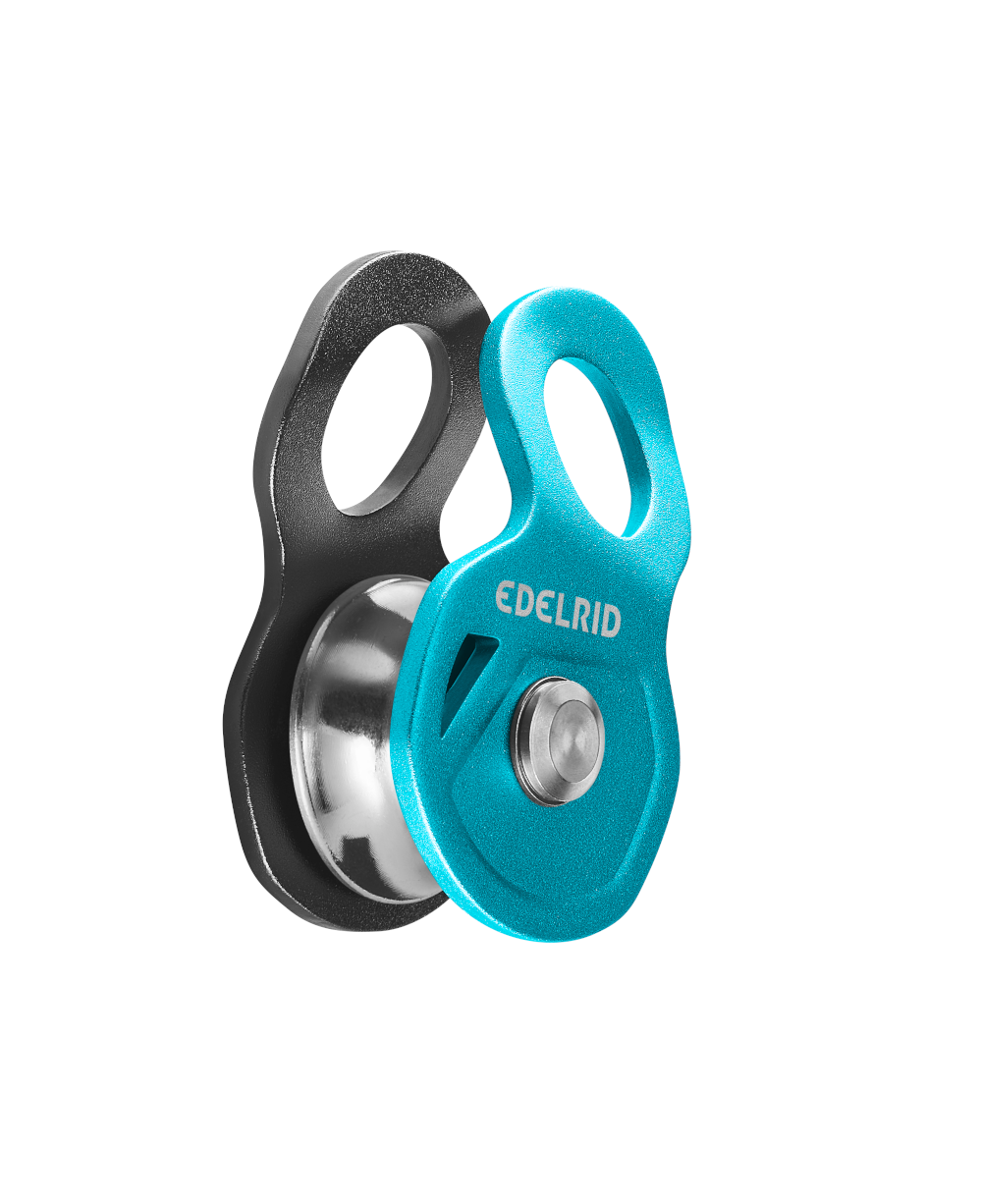

Featuring a ball-bearing-mounted pulley and an anodized aluminum roller, the FLUX achieves a 94% efficiency rating, minimizing friction and maximizing rope movement. The flexible side plates allow for rapid rigging and removal, saving valuable time during operations. The large carabiner hole is designed to accommodate all conventional EDELRID carabiners, ensuring secure and versatile connections.

Compact and Robust for Reliable Performance

The FLUX pulley is engineered for durability and reliability, with a working load limit of 500 kg (1102 lbs) and a minimum breaking strength of 26 kN. Its compact design and lightweight construction make it easy to transport and handle, while its robust aluminum build ensures long-lasting performance. Compatible with ropes ranging from 6 mm to 13 mm (0.24 to 0.51 inches) in diameter, and certified to EN 12278 standards, the FLUX pulley is a dependable tool for various rigging needs.

Specifications

• Height: 75 mm (2.95 inches)

• Width: 50 mm (1.97 inches)

• Efficiency: 94%

• Working Load Limit: 500 kg (1102 lbs)

• Minimum Breaking Strength: 26 kN

• Approved Rope Diameter: 6 - 13 mm (0.24 - 0.51 inches)

• Certification: EN 12278

• Material: Aluminum

Frequently Asked Questions (FAQs)

• Question: What is the primary use of the FLUX pulley?

  • Answer: The FLUX pulley is designed for block and tackle systems and directional anchors, suitable for fabric ropes and medium loads.

• Question: What is the working load limit of the FLUX pulley?

  • Answer: The working load limit is 500 kg (1102 lbs).

• Question: What rope diameters are compatible with this pulley?

  • Answer: The FLUX pulley is compatible with ropes ranging from 6 mm to 13 mm (0.24 to 0.51 inches) in diameter.

• Question: What are the key features that make this pulley easy to use?

  • Answer: The FLUX pulley features flexible side plates for quick rigging and removal, and a large carabiner hole for easy connections.

• Question: What certification does the FLUX pulley have?

  • Answer: The FLUX pulley is certified to EN 12278 standards.
