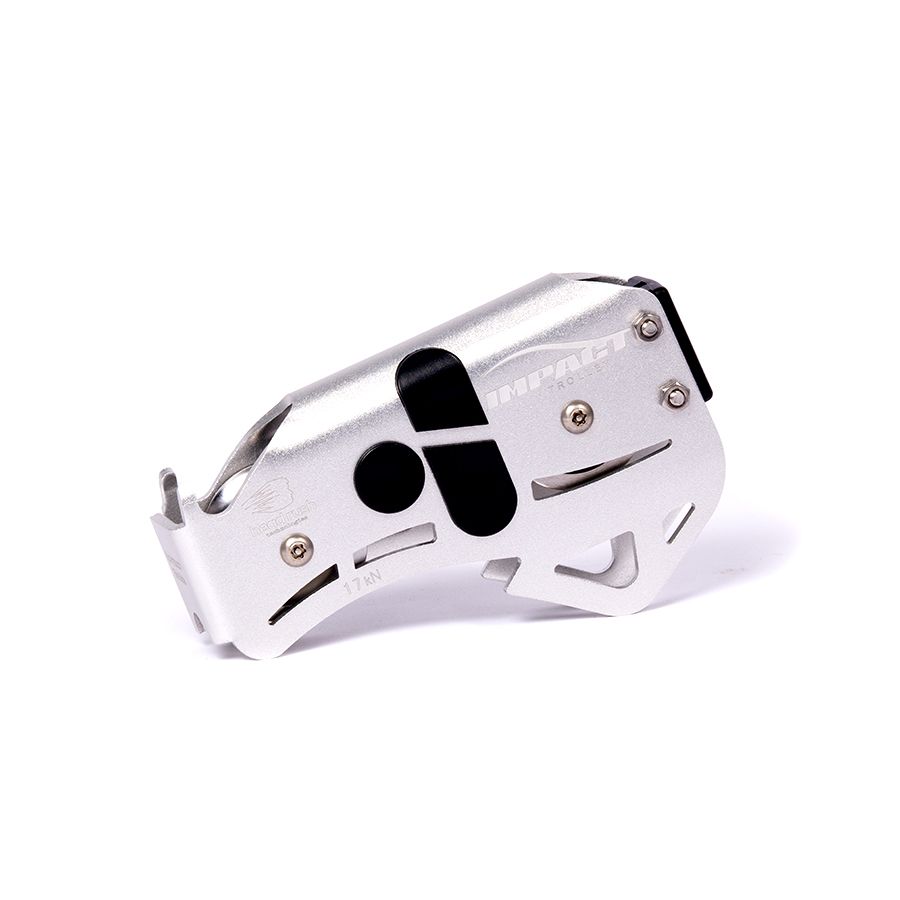

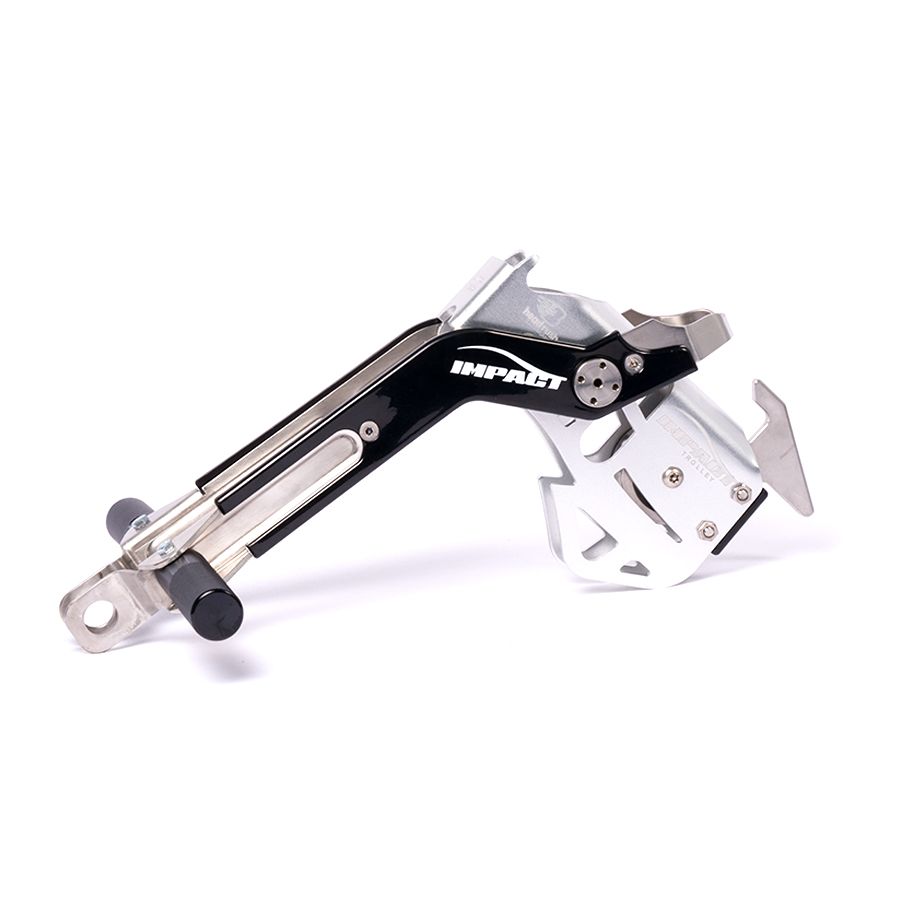

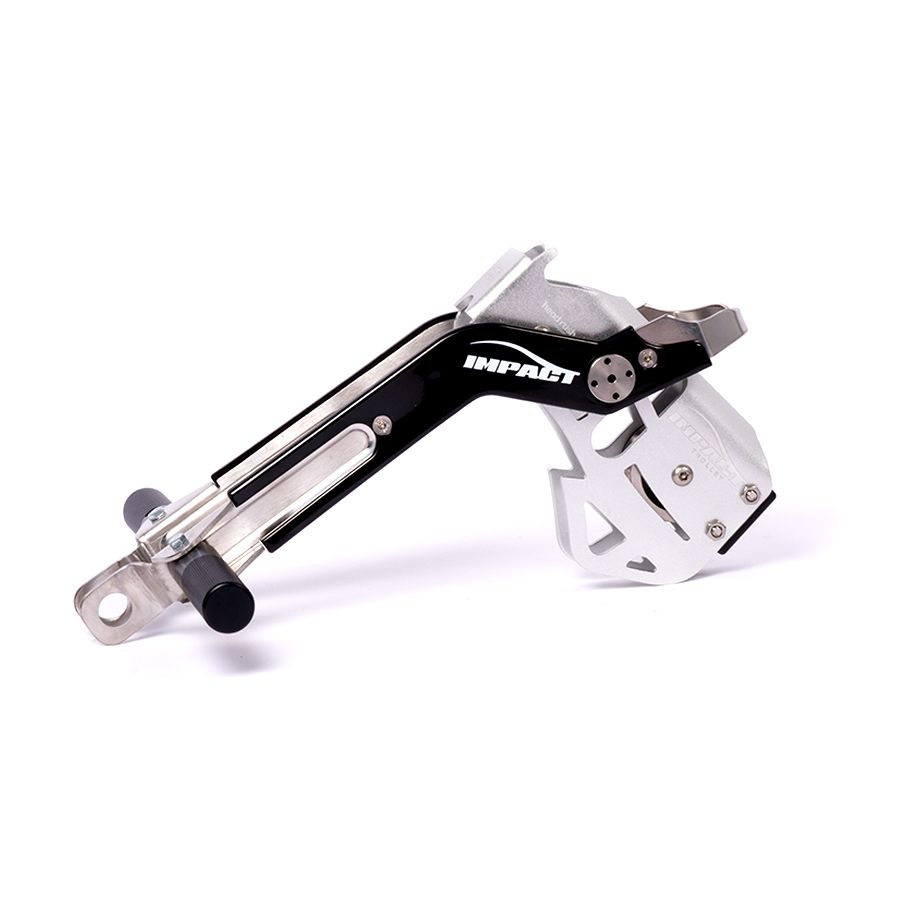

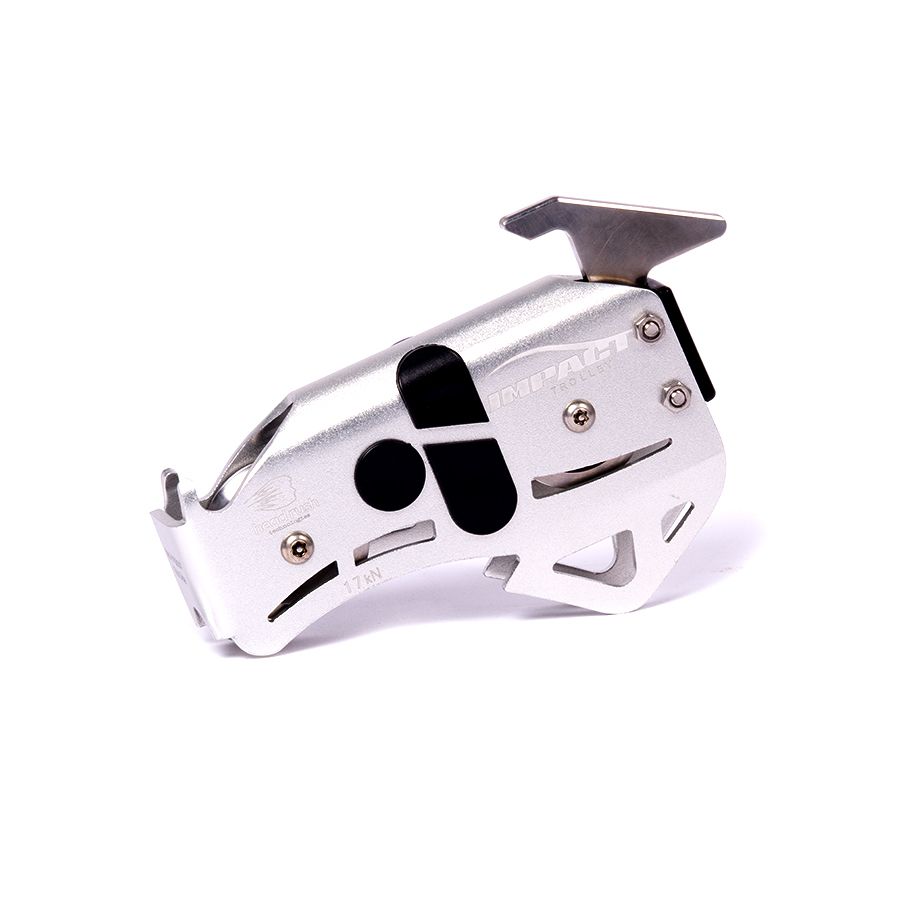

LightSpeed Impact Trolley

Enhance your zipline operation with the LightSpeed Impact Zip Line Trolley, engineered for smooth impact braking and high-speed performance. This trolley is designed to provide riders with an exceptional experience while maximizing operational efficiency. Its robust construction and compatibility with zipSTOP brakes make it a reliable and cost-effective solution for adventure parks and recreational facilities.

Optimized for Smooth Impact Braking & Rider Comfort: The LightSpeed Impact Zip Line Trolley is uniquely designed for smooth impact braking, ensuring a comfortable and safe ride for participants. This feature, specifically engineered for compatibility with zipSTOP brakes, minimizes jarring and enhances the overall rider experience.

High-Speed Performance & Increased Throughput: Rated for speeds up to 70 mph (112.65 km/h), the LightSpeed Impact Zip Line Trolley delivers high-speed performance without compromising safety. Its simple, single-step mounting process streamlines operations, maximizing throughput and reducing wait times.

Durable & Corrosion-Resistant Construction: Constructed from anodized aluminum, the LightSpeed Impact Zip Line Trolley offers increased strength and corrosion resistance, ensuring long-lasting performance in various environmental conditions. This durable design minimizes the need for frequent replacements, providing significant cost savings.

Enhanced Safety with Multiple Clip-In Points: The LightSpeed Impact Zip Line Trolley features multiple clip-in points, enhancing safety and providing operators with versatile rigging options. This design ensures secure connections and minimizes the risk of accidents, providing peace of mind for both operators and participants.

Specifications

• Model: IT-100 (Standard Impact Trolley)

• Dimensions: 7.1 x 4.4 x 1.3 in (180 x 111 x 33 mm)

• Net Weight: 1.2 lbs (544 grams)

• Working Temperatures:

  • Minimum: -40°C/-40°F

  • Maximum: 80°C/176°F

• Maximum Operating Speed: 75 mph (120 kph)

• Materials

  • Housing: Anodized Aluminum

  • Sheaves: Stainless Steel

  • Impact Surface: ABS Plastic

• Rated Working Capacity: 33-330 lbs (15-150 kg)

• Maximum Load Rating: 17 kN (3,822 lbf)

• Min/Max Cable Diameter: 9.5 ≤ Dia ≤ 19 mm (3/8” ≤ Dia ≤ 3/4”)
