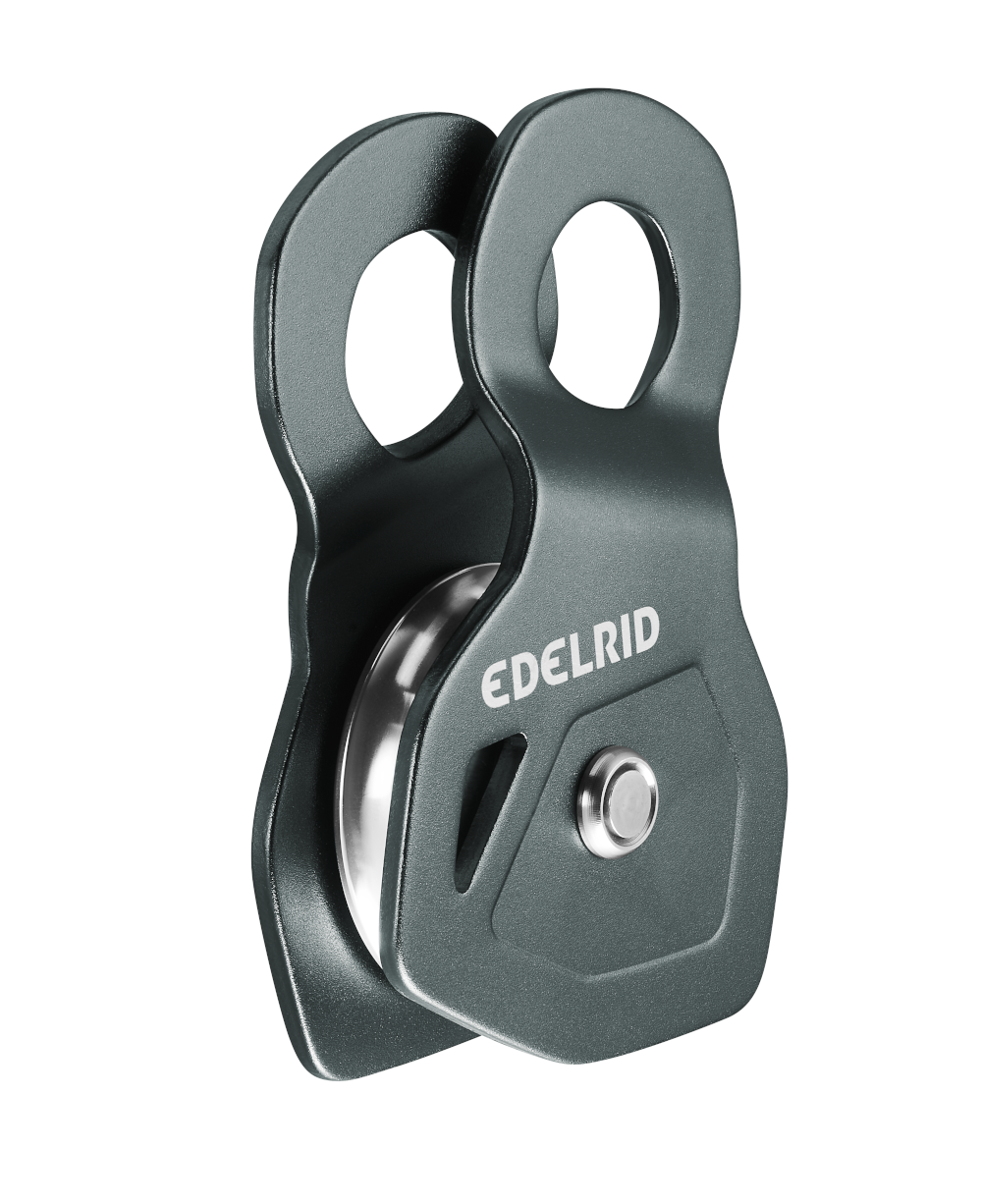

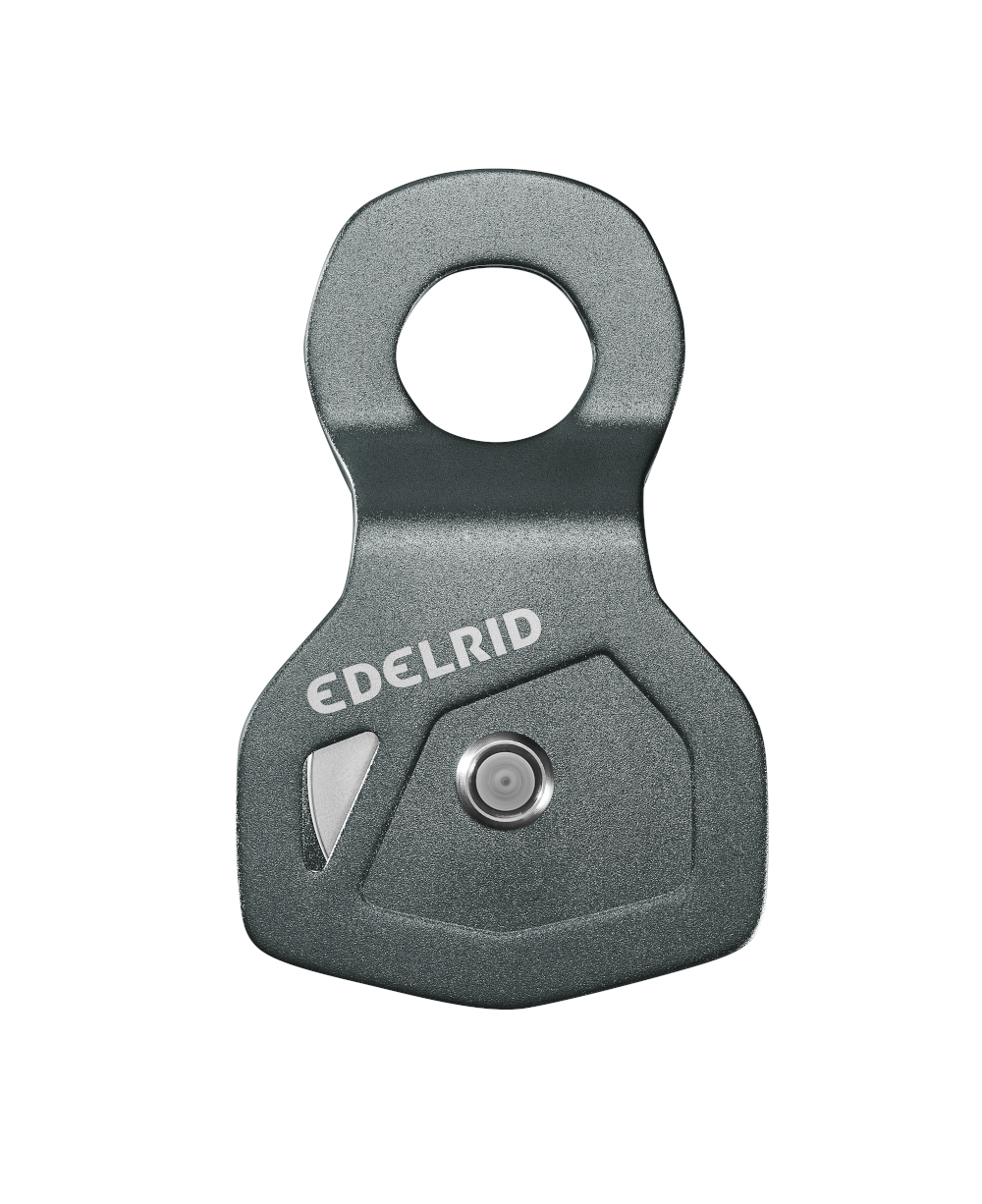

Pike Rescue Pulley

Engineered for the rigorous demands of professional rescue teams, the PIKE RESCUE pulley ensures reliable performance in both simple and complex block and tackle systems. This pulley's high breaking load and smooth operation make it an essential tool for effective and safe rescue operations.

Optimized Efficiency and Secure Rigging

Featuring a ball-bearing-mounted pulley, the PIKE RESCUE achieves an impressive 98% efficiency, minimizing friction and maximizing rope movement. The large carabiner opening is designed to accommodate two carabiners, or a locking carabiner with a gate that can fully rotate, providing versatile rigging options and enhanced safety during critical operations. This design ensures secure and efficient rope management, crucial for time-sensitive rescue scenarios.

Robust Construction for Unmatched Reliability

Built to withstand the most challenging conditions, the PIKE RESCUE boasts a minimum breaking strength of 46 kN and a working load limit of 900 kg (1984 lbs). Its durable aluminum construction and EN 12278 certification guarantee reliability and longevity. Compatible with ropes ranging from 6 mm to 13 mm (0.24 to 0.51 inches) in diameter, this pulley offers flexibility for various rescue setups, making it a vital component of any professional rescue kit.

Specifications

• Height: 120 mm (4.72 inches)

• Width: 72 mm (2.83 inches)

• Efficiency: 98%

• Working Load Limit: 900 kg (1984 lbs)

• Minimum Breaking Strength: 46 kN

• Approved Rope Diameter: 6 - 13 mm (0.24 - 0.51 inches)

• Certification: EN 12278

• Material: Aluminum

Frequently Asked Questions (FAQs)

• Question: What is the maximum rope diameter this pulley can handle?

  • Answer: The PIKE RESCUE pulley is designed for ropes with diameters ranging from 6 mm to 13 mm (0.24 to 0.51 inches).

• Question: What is the working load limit of the PIKE RESCUE pulley?

  • Answer: The working load limit of this pulley is 900 kg (1984 lbs).

• Question: Can this pulley accommodate multiple carabiners?

  • Answer: Yes, the large carabiner opening is designed to accommodate two carabiners, or a locking carabiner with a gate that can fully rotate.

• Question: What material is the pulley made from?

  • Answer: The pulley is constructed from durable aluminum.

• Question: What certifications does this pulley have?

  • Answer: This pulley is certified to EN 12278 standards.
