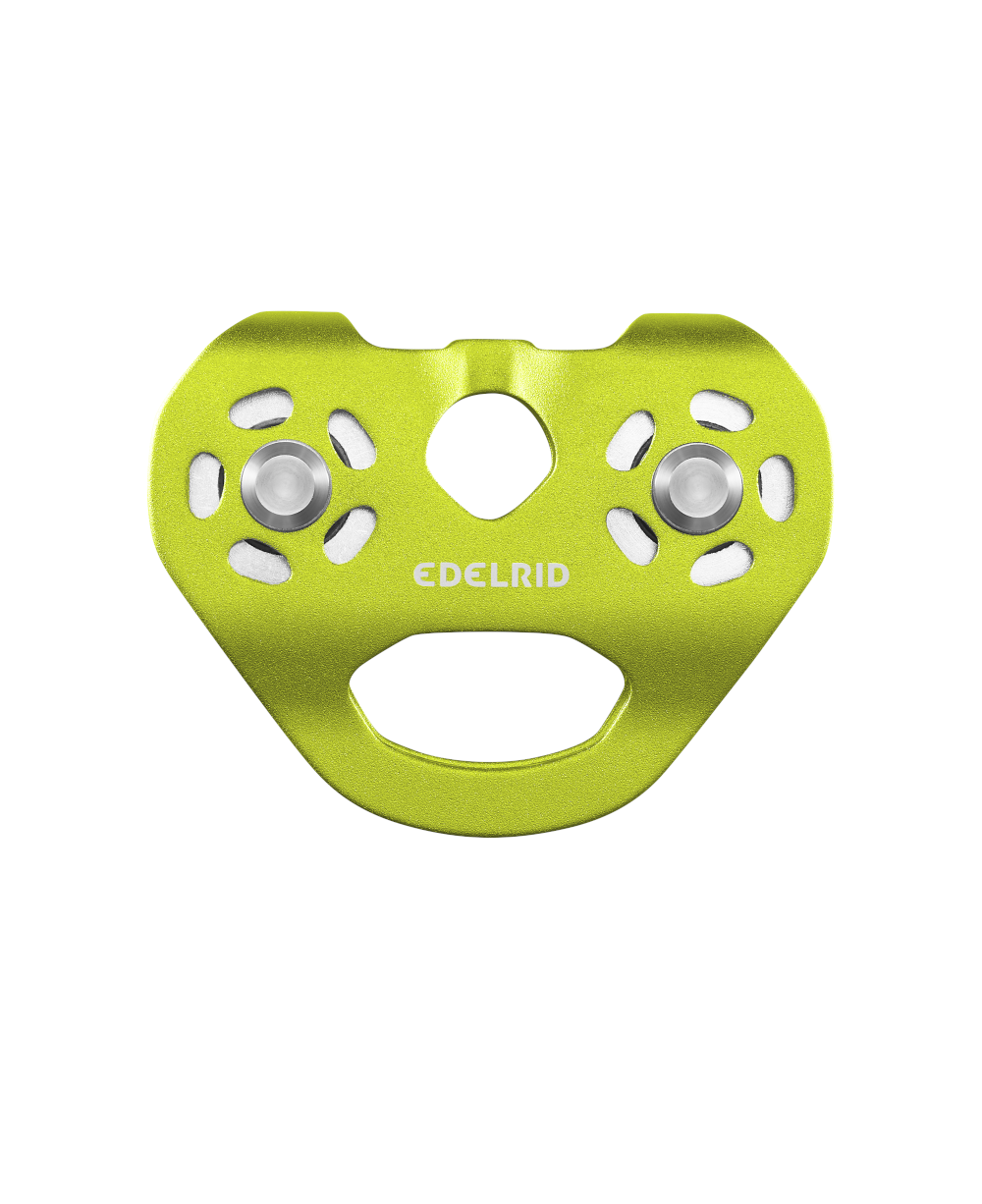

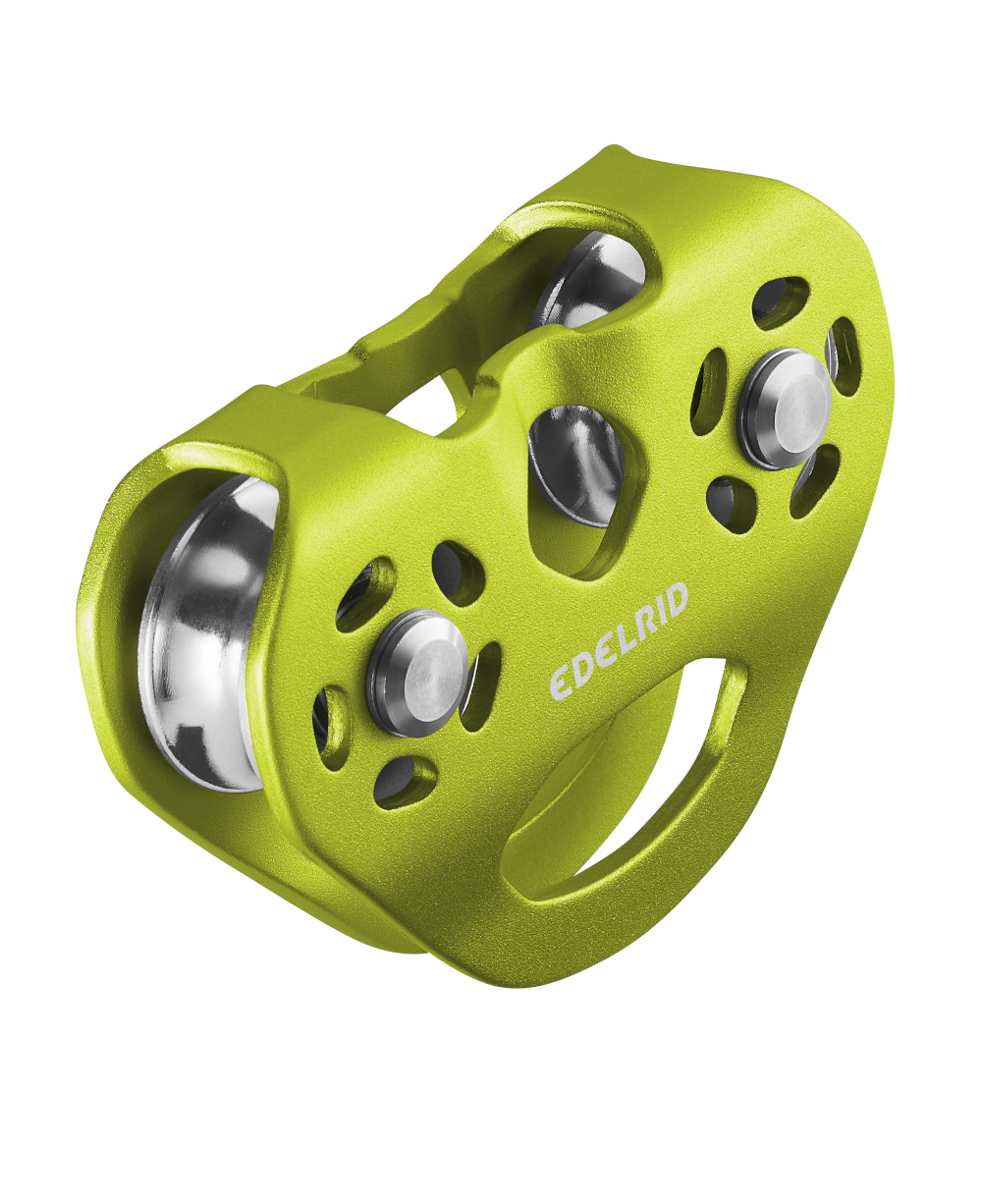

Warp Pulley

Engineered for high-demand environments like adventure parks and cable car systems, the WARP double pulley combines durability with smooth, efficient operation. Its stainless steel rollers and robust design ensure reliable performance, even under heavy loads and frequent use.

Superior Efficiency and Robust Construction

The WARP double pulley features ball-bearing-mounted stainless steel rollers, optimized for minimal friction and maximum efficiency, achieving a 92% efficiency rating. These rollers are designed to withstand wear from steel ropes while also performing flawlessly with fabric ropes. The large opening provides ample space for two carabiners, and the connection point at the top allows for redundant system setups with double rope guidance, enhancing safety and reliability.

Designed for High-Demand Applications

Constructed from a combination of aluminum and steel, the WARP is built to endure the rigors of adventure parks and auxiliary cable car systems. With a working load limit of 1,000 kg (2204 lbs) and a minimum breaking strength of 32 kN, this pulley provides the strength and durability required for demanding applications. It is compatible with ropes up to 13 mm (0.51 inches) in diameter and is certified to EN 12278 standards, ensuring compliance and safety.

Specifications

• Height: 85 mm (3.35 inches)

• Width: 100 mm (3.94 inches)

• Efficiency: 92%

• Working Load Limit: 1,000 kg (2204 lbs)

• Minimum Breaking Strength: 32 kN

• Approved Rope Diameter: < 13 mm (0.51 inches)

• Certification: EN 12278

• Material: Aluminum/Steel

Frequently Asked Questions (FAQs)

• Question: What types of ropes can be used with the WARP pulley?

  • Answer: The WARP pulley is designed to be compatible with both steel and fabric ropes.

• Question: What is the working load limit of this pulley?

  • Answer: The working load limit is 1,000 kg (2204 lbs).

• Question: Is this pulley suitable for use in redundant systems?

  • Answer: Yes, the connection point at the top of the pulley allows for use in redundant systems with double rope guidance.

• Question: What materials are used in the WARP pulley?

  • Answer: The pulley is made from a combination of aluminum and steel.

• Question: What certification does this pulley have?

  • Answer: This pulley is certified to EN 12278 standards.
