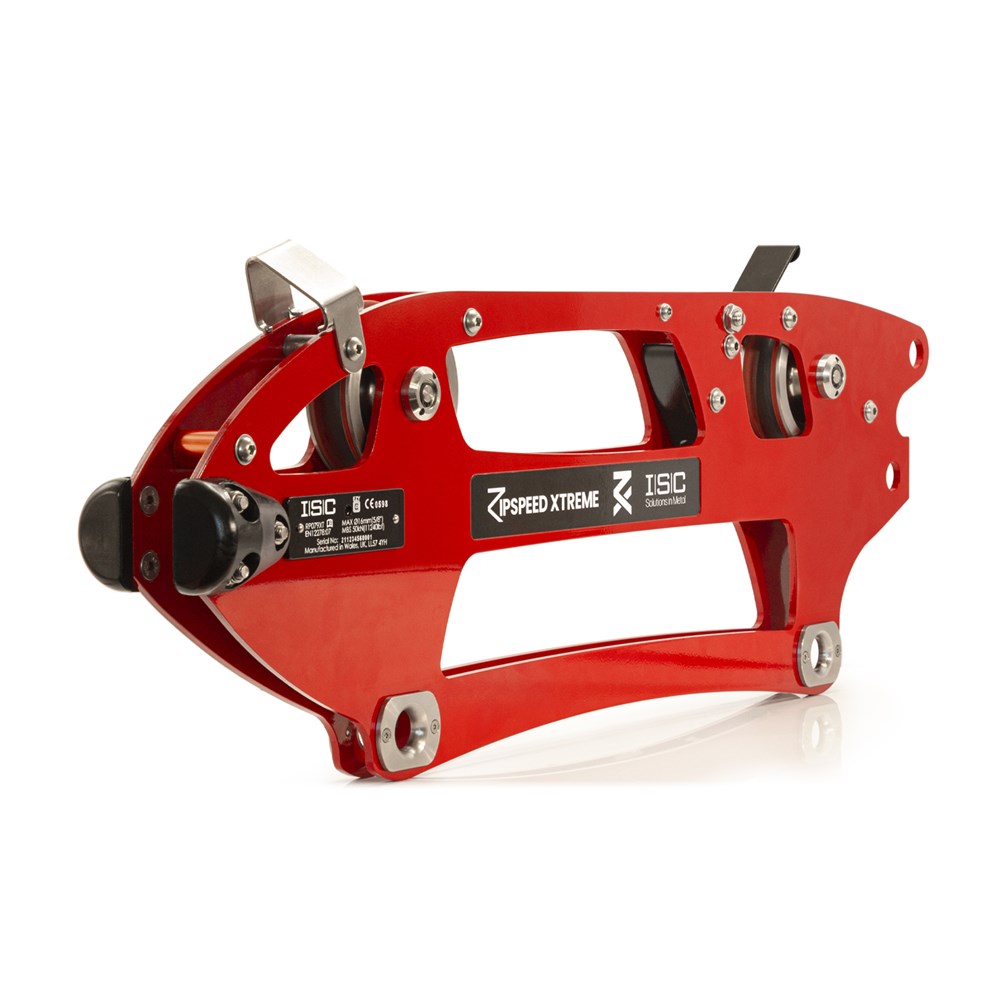

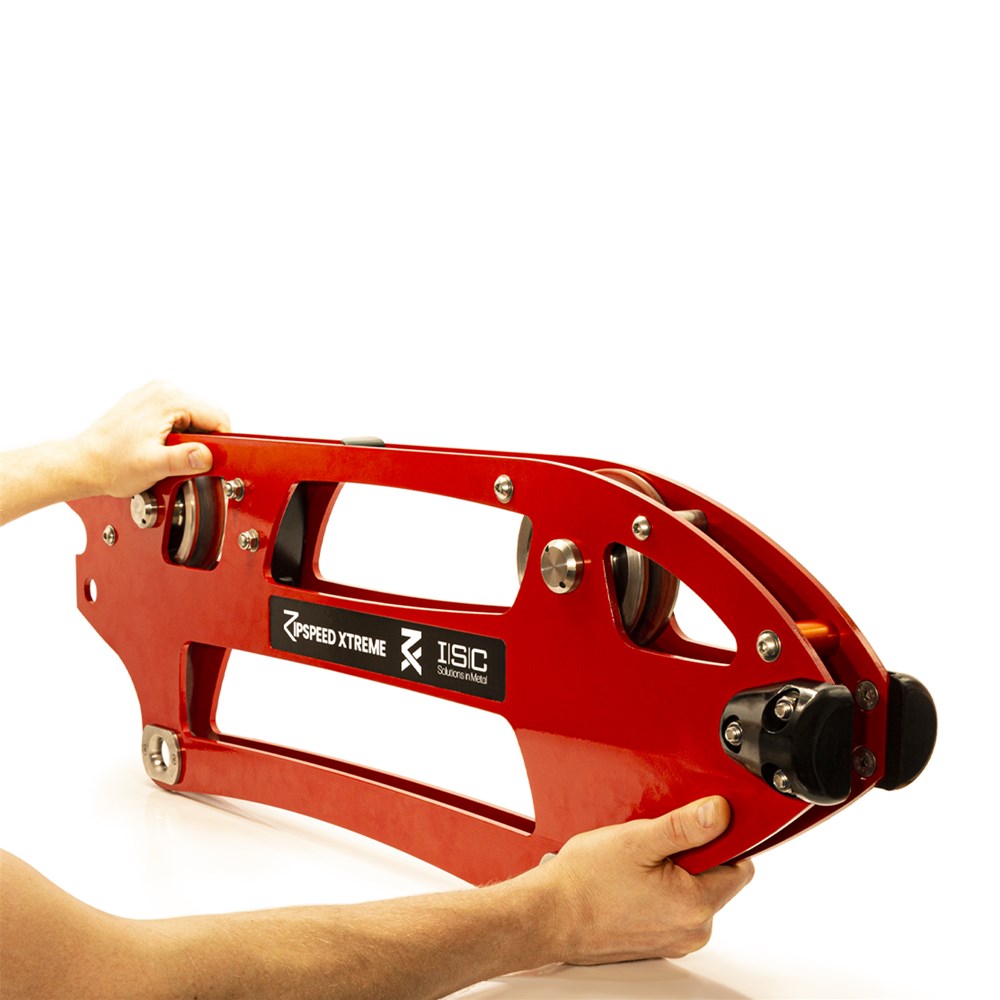

ZipSpeed XTREME Trolley ø16mm Cable

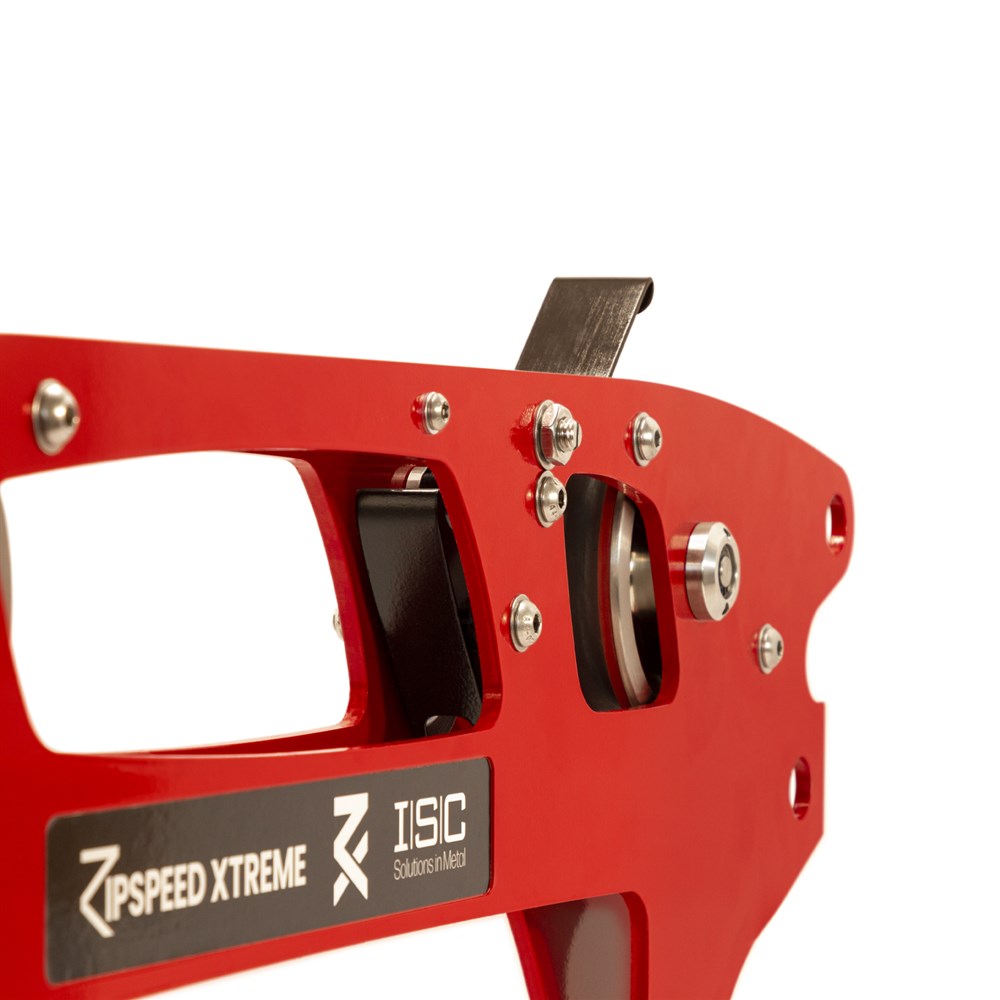

The ZipSpeed XTREME Trolley significantly minimizes noise emissions, addressing concerns about the impact on local residents and wildlife. This proactive noise reduction is crucial for operators seeking planning permission and maintaining positive community relations. The specially designed side plates optimize vibration frequency, and the stainless steel wheels feature noise-dampening polyurethane tires, working together to create a quieter ride without compromising speed or safety.

Advanced Safety Features

Equipped with the innovative Noise Reduction ARC Cam system (NRARC), the ZipSpeed XTREME Trolley offers enhanced safety. The NRARC system includes an air paddle that disengages the anti-rollback cam during forward motion, eliminating noise. If a rider doesn't reach the end, the cam automatically engages to prevent backward rolling, drastically reducing rescue distances and times. The trolley also features twin steel-reinforced impact bumpers and compatibility with various braking systems, including a fender attachment for optimal brake engagement.

Specifications

• Cable Compatibility: 16mm (5/8") steel cable

• Minimum Breaking Strength (MBS): 50 kN (11240 lbf)

• Weight: 8150 grams (18 lb)

• Optimal Speed Range: 128-160 kph (80-100 mph)

• Maximum Recommended Speed: 185 kph (115 mph)

Benefits

• Noise Reduction: Minimizes sound pollution for a more environmentally conscious operation.

• High Performance: Capable of speeds over 160 kph (100 mph) for an exhilarating rider experience.

• Enhanced Safety: Features an advanced anti-rollback system (NRARC) to reduce rescue times.

• Durability: Built with robust materials to withstand the demands of high-volume use.

• Brake Compatibility: Compatible with various industry-standard braking systems.

Specifications List

• Compatible with 16mm (5/8") steel cable.

• Minimum Breaking Strength (MBS) of 50 kN (11240 lbf).

• Weighs 8150 grams (18 lb).

• Optimal operating speed range of 128-160 kph (80-100 mph).

• Maximum recommended operating speed of 185 kph (115 mph).

• Features twin steel-reinforced impact bumpers.

• Equipped with a Noise Reduction ARC Cam system (NRARC).

• Compatible with Impact Trolley braking systems.

• Offers an optional grab rope system.

• Serial numbering is standard.

• EZYiD availability upon request.

• Certified to EN 12278 standards.

FAQs

• What type of zip line cable is compatible with the ZipSpeed XTREME Trolley?

  • The ZipSpeed XTREME Trolley is compatible with industry-standard 16mm (5/8") steel cable. For optimal performance and noise reduction, we recommend using smooth-surfaced ‘Interlocked’ cable.

• What is the maximum speed the ZipSpeed XTREME Trolley can achieve?

  • The maximum recommended speed for the ZipSpeed XTREME Trolley is 185 kph (115 mph), with an optimal operating range of 128-160 kph (80-100 mph). However, actual speeds may vary depending on factors such as cable quality, rider weight, and environmental conditions.

• How does the noise reduction feature work?

  • The ZipSpeed XTREME Trolley incorporates several noise reduction features, including specially designed side plates that optimize vibration frequency and stainless steel wheels with noise-dampening polyurethane tires. The optional NRARC system with an air paddle further minimizes noise from the anti-rollback mechanism.

• What safety features does the ZipSpeed XTREME Trolley have?

  • The trolley is equipped with the Noise Reduction ARC Cam system (NRARC) for anti-rollback, twin steel-reinforced impact bumpers, and compatibility with various braking systems. It also offers an optional grab rope system to prevent roll-back at the landing platform.

• Is the ZipSpeed XTREME Trolley suitable for all weather conditions?

  • While the ZipSpeed XTREME Trolley is built with durable materials, environmental factors such as salt spray or abrasive particles can affect its performance and lifespan. Regular maintenance is crucial to ensure optimal operation in various conditions.
