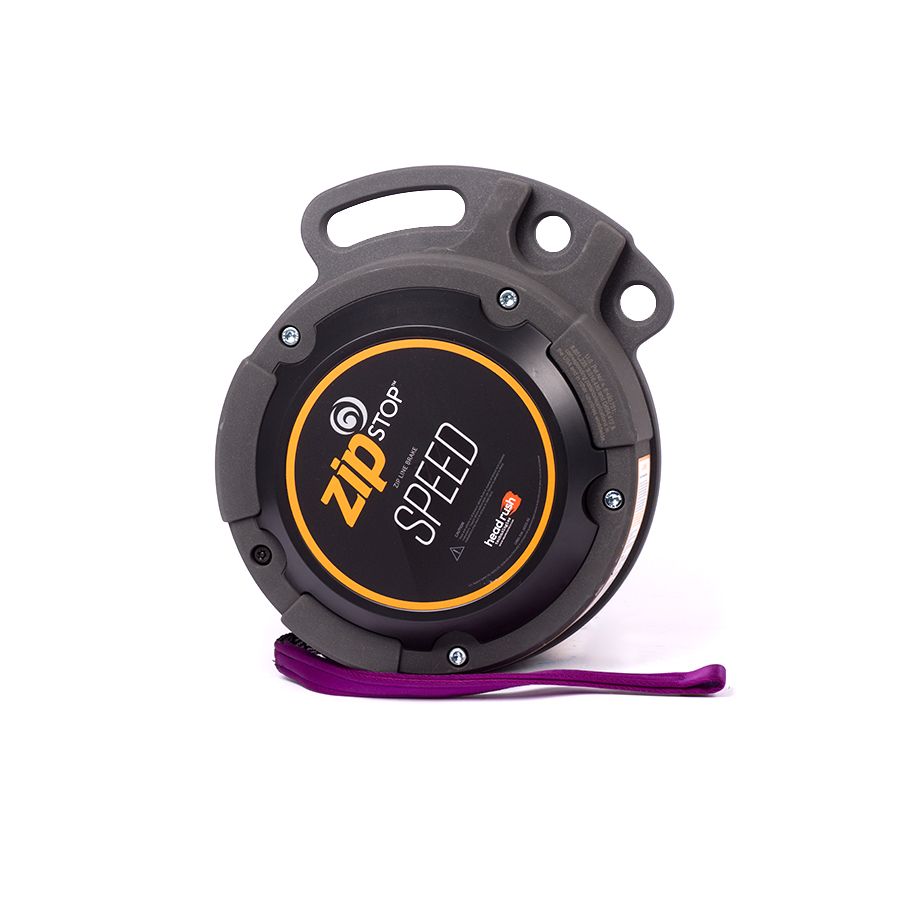

zipSTOP SPEED Zip Line Brake

The zipSTOP SPEED Zip Line Brake utilizes self-regulating eddy current magnetic technology to deliver smooth, comfortable, and consistent deceleration, even at arrival speeds up to 72 kph (45 mph). Designed for professional adventure, outdoor, amusement, and recreation operations, this brake enhances safety and rider satisfaction.

Enhanced High-Speed Braking

The zipSTOP SPEED incorporates an internal reduction mechanism in conjunction with an external 2:1 reduction system. This unique combination ensures a smooth and controlled arrest of riders at the highest arrival speeds, providing an extra layer of safety and a premium experience for thrill-seekers.

Optimized Reset and Reliability

The internal design of the zipSTOP SPEED improves the automatic reset function, allowing for quicker cycle times and increased throughput on your zip line. Built to endure outdoor environments, this brake offers consistent performance in all conditions, minimizing downtime and maximizing operational efficiency.

Broad Compatibility

Like other zipSTOP models, the SPEED accommodates a wide range of rider weights, from 15 to 150 kg (33 to 330 lbs). Its robust design ensures reliable braking performance for diverse users.

Simple Integration

The zipSTOP SPEED assembly includes the brake device, trolley, and mounting bracket, facilitating straightforward installation. It is specifically designed for use with an external 2:1 reduction line setup and supports a maximum line extension of 20 meters.

Specifications List

• Rated Working Capacity: 15 to 150 kg (33 to 330 lbs)

• Device Weight: 23.5 kg (52 lbs)

• Model Number: ZSSD150-20A

• Rated Working Velocity: 0 to 72 kph (0 to 45 mph) utilizing a 2:1 reduction*

• Maximum Line Extension: 20 m

*This device must be used with an external 2:1 reduction system.

FAQs

• What makes the zipSTOP SPEED specifically designed for higher speeds?

  • The zipSTOP SPEED utilizes both an internal reduction system and requires an external 2:1 reduction line setup. This dual reduction allows it to smoothly and safely decelerate riders arriving at speeds up to 72 kph (45 mph).

• Does the zipSTOP SPEED also have the automatic reset feature?

  • Yes, the zipSTOP SPEED features an improved automatic reset mechanism, which helps to increase the efficiency of your zip line operation by preparing the brake for the next rider quickly.

• Is the installation process for the zipSTOP SPEED different from other zipSTOP models?

  • The installation is similar, but it's crucial to note that the zipSTOP SPEED must be used with an external 2:1 reduction line setup. Ensure this configuration is correctly implemented for optimal performance.

• What are the benefits of using the zipSTOP SPEED over a standard zip line brake at higher speeds?

  • The zipSTOP SPEED is specifically engineered for higher arrival speeds, providing a smoother and more controlled braking experience. Its dual reduction system enhances safety and rider comfort at these increased velocities.

• What is the maintenance requirement for the zipSTOP SPEED?

  • Like other zipSTOP brakes, the SPEED is designed for low maintenance. It will require regular inspections and an annual recertification to ensure continued safe and reliable operation.
