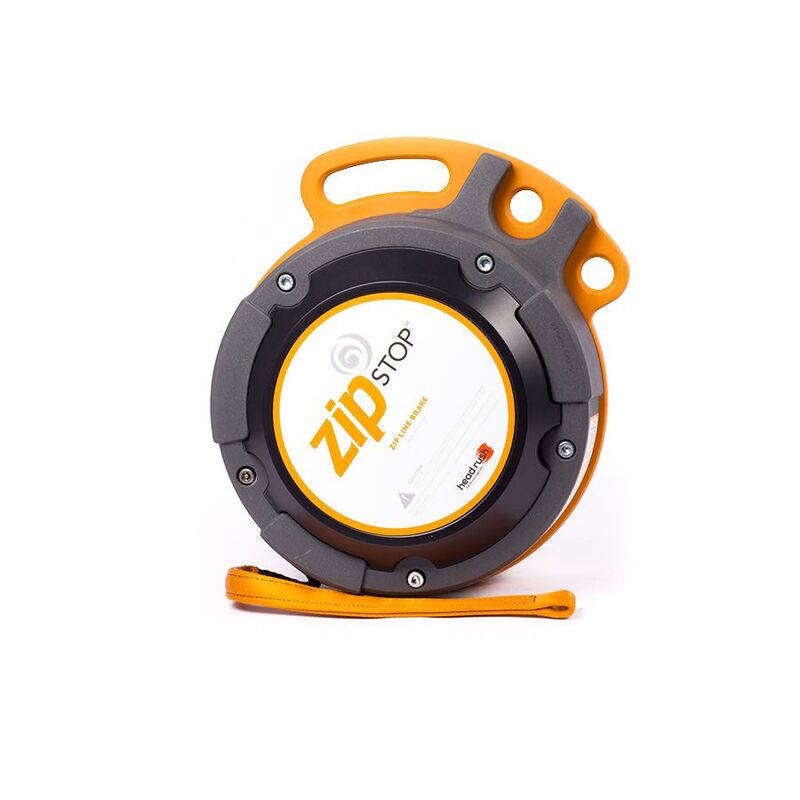

zipSTOP Zip Line Brake

The zipSTOP Zip Line Brake delivers consistent and comfortable deceleration for a wide range of riders. Its self-regulating magnetic system adapts to different weights and speeds, enhancing safety and the overall rider experience on your adventure course, outdoor park, or recreational facility.

Reliable Rider Deceleration

The eddy current braking technology automatically adjusts to each rider, ensuring a smooth and controlled stop every time. This eliminates the need for manual adjustments and reduces the risk of abrupt stops, providing a safer and more enjoyable experience for your guests.

Simplified Operations and Safety

The automatic reset feature of the zipSTOP minimizes the potential for human error, allowing your staff to focus on other critical aspects of your operation. By taking the braking process out of the hands of riders or guides, you significantly enhance safety protocols and reduce potential risks.

Robust Design, Low Maintenance

The zipSTOP is built to last in demanding outdoor environments, ensuring consistent performance across all weather conditions. Its durable construction and minimal wear parts contribute to a low cost of ownership, with a straightforward annual recertification process.

Adaptable Performance

The zipSTOP can handle a broad spectrum of rider weights, from 15 to 150 kg (33 to 330 lbs). It accommodates arrival speeds up to 36 kph (22 mph) with a direct 1:1 connection and up to 60 kph (37 mph) when used with a 2:1 reduction line system.

Easy Integration

The zipSTOP assembly includes the brake device, trolley, and all necessary mounting hardware, making installation straightforward. Its design allows for a maximum line extension of 12.5 meters.

Specifications List

• Rated Working Capacity: 15 to 150 kg (33 to 330 lbs)

• Device Weight: 23.5 kg (52 lbs)

• Model Number: ZS125-08

• Warranty: 1 year

• Rated Working Velocity:

  • 0 to 36 kph (4 to 22 mph) with a direct 1:1 load

  • 0 to 60 kph (6 to 37 mph) with a 2:1 reduction line*

• Maximum Line Extension: 12.5 m

*Higher rated working velocities require the zipSTOP device to be used with a reduction line assembly. The listed specifications are valid only when installed as part of that system.

FAQs

• What makes the zipSTOP different from other zip line brakes?

  • The zipSTOP utilizes self-regulating eddy current magnetic braking technology. This means it automatically adjusts the braking force based on the rider's speed and weight, providing a consistently smooth and comfortable stop without manual intervention.

• Is the zipSTOP difficult to install?

  • No, the zipSTOP assembly comes with a brake device, trolley, and all necessary mounting hardware. Detailed instructions are provided to ensure a straightforward installation process.

• What kind of maintenance does the zipSTOP require?

  • The zipSTOP is designed for low maintenance. It requires an annual recertification and occasional replacement of sacrificial wear parts. This helps keep the cost of ownership down.

• Can the zipSTOP be used in all weather conditions?

  • Yes, the zipSTOP is built to withstand outdoor environments and is designed to perform consistently in various weather conditions, ensuring reliable operation year-round.

• What happens if there is a power outage?

  • The zipSTOP is a passive magnetic braking system and does not rely on electricity to function. Therefore, it will continue to operate effectively even in the event of a power outage.
